Tip Selection Guide

Select the tip that meets the required dot diameter and/or the required deposit volume for your application. Make a note of the tip part number (first column) and the piston part number (last column) meeting those requirements.

Description Operation Dispense Component Selection

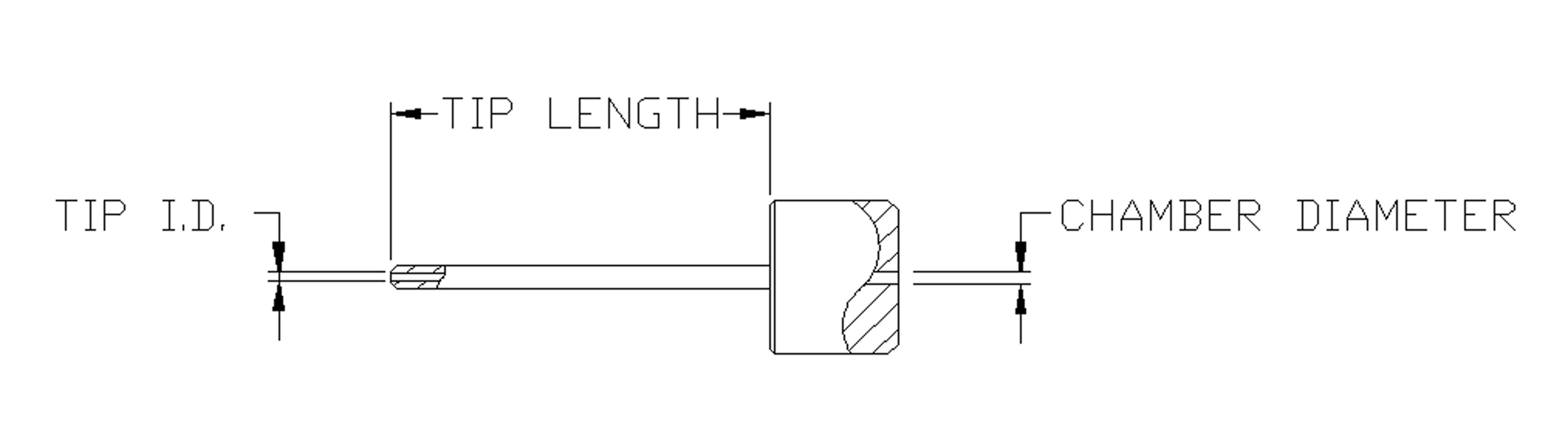

Dispense Tip/Chamber Components (Other configurations available - Contact us with your requirements)
Inches

Part Number Tip I.D. inches Typical dot dia range inches Tip Length Inches Chamber Dia inches Typical volume range ul Use with Piston #

0008-12-079 0.002 0.0025 - 0.015 0.375 0.005 0.00001 - 0.015 0008-13-033

0008-12-045 0.004 0.006 - 0.030 0.180 0.010 0.0009 - 0.12 0008-13-026

0008-12-069 0.004 0.006 - 0.015 0.375 0.005 0.0009 - 0.015 0008-13-033

0008-12-060 0.004 0.006 - 0.020 0.375 0.007 0.0009 - 0.036 0008-13-032

0008-12-086 0.004 0.006 - 0.030 0.375 0.007 0.0009 - 0.12 0008-13-032

0008-12-057 0.004 0.006 - 0.030 0.375 0.010 0.0009 - 0.12 0008-13-026

0008-12-055 0.006 0.010 - 0.030 0.180 0.010 0.0043 - 0.12 0008-13-026

0008-12-097 0.006 0.010 - 0.045 0.300 0.014 0.0043 - 0.40 0008-13-013

0008-12-070 0.006 0.010 - 0.020 0.375 0.007 0.0043 - 0.035 0008-13-032

0008-12-058 0.006 0.010 - 0.030 0.375 0.010 0.0043 - 0.12 0008-13-026

0008-03-041 0.006 0.010 - 0.045 0.775 0.014 0.0043 - 0.40 0008-13-013

0008-03-043 0.006 0.012 - 0.065 0.775 0.025 0.0074 - 1.18 0008-13-015

0008-12-046 0.006 0.010 - 0.030 0.775 0.010 0.0043 - 0.12 0008-13-026

0008-08-042 0.006 0.010 0.045 0.775 0.014 0.0043 - 0.40 0008-13-013

0008-03-045 0.008 0.012 - 0.045 1.140 0.014 0.0074 - 0.40 0008-13-013

0008-03-046 0.008 0.012 - 0.045 0.775 0.014 0.0074 - 0.40 0008-13-013

0008-03-053 0.008 0.012 - 0.065 1.140 0.025 0.0074 - 1.18 0008-13-015

0008-03-001 0.010 0.015 - 0.045 0.775 0.014 0.0145 - 0.40 0008-13-013

0008-03-002 0.010 0.015 - 0.065 0.775 0.025 0.0145 - 1.18 0008-13-015

0008-03-004 0.010 0.017 - 0.090 0.775 0.040 0.0145 - 0.40 0008-13-017

0008-03-057 0.010 0.015 - 0.045 1.140 0.014 0.0145 - 0.40 0008-13-013

0008-03-006 0.012 0.020 - 0.045 0.775 0.014 0.034 - 0.40 0008-13-013

0008-03-051 0.012 0.020 - 0.065 1.140 0.025 0.034 - 1.18 0008-13-015

0008-03-040 0.012 0.020 - 0.065 0.775 0.025 0.034 - 1.18 0008-13-015

0008-03-052 0.012 0.020 - 0.090 0.775 0.040 0.034 - 3.13 0008-13-017

0008-03-010 0.016 0.024 - 0.065 0.775 0.025 0.059 - 1.18 0008-13-015

0008-03-012 0.016 0.024 - 0.090 0.775 0.040 0.059 - 3.13 0008-13-017

0008-03-016 0.020 0.030 - 0.065 0.775 0.025 0.116 - 1.18 0008-13-015

0008-03-018 0.020 0.030 - 0.090 0.775 0.040 0.116 - 3.13 0008-13-017

0008-03-017 0.020 0.030 - 0.065 1.140 0.025 0.116 - 1.18 0008-13-015

0008-03-019 0.020 0.030 - 0.090 1.140 0.040 0.116 - 3.13 0008-13-017

0008-03-022 0.023 0.035 - 0.065 0.775 0.025 0.184 - 1.18 0008-13-015

0008-03-024 0.023 0.035 - 0.090 0.775 0.040 0.184 - 3.13 0008-13-017

0008-03-023 0.023 0.035 - 0.065 1.140 0.025 0.184 - 1.18 0008-13-015

0008-03-025 0.023 0.035 - 0.090 1.140 0.040 0.116 - 3.13 0008-13-017

0008-03-028 0.033 0.040 - 0.090 0.775 0.040 0.275 - 3.13 0008-13-017

Part Number	Tip I.D. inches	Typical dot dia range inches	Tip Length Inches	Chamber Dia inches	Typical volume range ul	Use with Piston #
0008-12-079	0.002	0.0025 - 0.015	0.375	0.005	0.00001 - 0.015	0008-13-033
0008-12-045	0.004	0.006 - 0.030	0.180	0.010	0.0009 - 0.12	0008-13-026
0008-12-069	0.004	0.006 - 0.015	0.375	0.005	0.0009 - 0.015	0008-13-033
0008-12-060	0.004	0.006 - 0.020	0.375	0.007	0.0009 - 0.036	0008-13-032
0008-12-086	0.004	0.006 - 0.030	0.375	0.007	0.0009 - 0.12	0008-13-032
0008-12-057	0.004	0.006 - 0.030	0.375	0.010	0.0009 - 0.12	0008-13-026
0008-12-055	0.006	0.010 - 0.030	0.180	0.010	0.0043 - 0.12	0008-13-026
0008-12-097	0.006	0.010 - 0.045	0.300	0.014	0.0043 - 0.40	0008-13-013
0008-12-070	0.006	0.010 - 0.020	0.375	0.007	0.0043 - 0.035	0008-13-032
0008-12-058	0.006	0.010 - 0.030	0.375	0.010	0.0043 - 0.12	0008-13-026
0008-03-041	0.006	0.010 - 0.045	0.775	0.014	0.0043 - 0.40	0008-13-013
0008-03-043	0.006	0.012 - 0.065	0.775	0.025	0.0074 - 1.18	0008-13-015
0008-12-046	0.006	0.010 - 0.030	0.775	0.010	0.0043 - 0.12	0008-13-026
0008-08-042	0.006	0.010 0.045	0.775	0.014	0.0043 - 0.40	0008-13-013
0008-03-045	0.008	0.012 - 0.045	1.140	0.014	0.0074 - 0.40	0008-13-013
0008-03-046	0.008	0.012 - 0.045	0.775	0.014	0.0074 - 0.40	0008-13-013
0008-03-053	0.008	0.012 - 0.065	1.140	0.025	0.0074 - 1.18	0008-13-015
0008-03-001	0.010	0.015 - 0.045	0.775	0.014	0.0145 - 0.40	0008-13-013
0008-03-002	0.010	0.015 - 0.065	0.775	0.025	0.0145 - 1.18	0008-13-015
0008-03-004	0.010	0.017 - 0.090	0.775	0.040	0.0145 - 0.40	0008-13-017
0008-03-057	0.010	0.015 - 0.045	1.140	0.014	0.0145 - 0.40	0008-13-013
0008-03-006	0.012	0.020 - 0.045	0.775	0.014	0.034 - 0.40	0008-13-013
0008-03-051	0.012	0.020 - 0.065	1.140	0.025	0.034 - 1.18	0008-13-015
0008-03-040	0.012	0.020 - 0.065	0.775	0.025	0.034 - 1.18	0008-13-015
0008-03-052	0.012	0.020 - 0.090	0.775	0.040	0.034 - 3.13	0008-13-017
0008-03-010	0.016	0.024 - 0.065	0.775	0.025	0.059 - 1.18	0008-13-015
0008-03-012	0.016	0.024 - 0.090	0.775	0.040	0.059 - 3.13	0008-13-017
0008-03-016	0.020	0.030 - 0.065	0.775	0.025	0.116 - 1.18	0008-13-015
0008-03-018	0.020	0.030 - 0.090	0.775	0.040	0.116 - 3.13	0008-13-017
0008-03-017	0.020	0.030 - 0.065	1.140	0.025	0.116 - 1.18	0008-13-015
0008-03-019	0.020	0.030 - 0.090	1.140	0.040	0.116 - 3.13	0008-13-017
0008-03-022	0.023	0.035 - 0.065	0.775	0.025	0.184 - 1.18	0008-13-015
0008-03-024	0.023	0.035 - 0.090	0.775	0.040	0.184 - 3.13	0008-13-017
0008-03-023	0.023	0.035 - 0.065	1.140	0.025	0.184 - 1.18	0008-13-015
0008-03-025	0.023	0.035 - 0.090	1.140	0.040	0.116 - 3.13	0008-13-017
0008-03-028	0.033	0.040 - 0.090	0.775	0.040	0.275 - 3.13	0008-13-017

Metric

Part Number	Tip I.D. microns	Typical dot dia range microns	Tip Length mm	Chamber Dia microns	Typical volume range	Use with Piston #
0008-12-079	51	64 - 381	9.5	127	0.0001 - 0.015	0008-13-033
0008-12-045	102	152 - 762	4.6	254	0.0009 - 0.12	0008-13-026
0008-12-069	102	152 - 381	9.5	127	0.0009 - 0.015	0008-13-033
0008-12-060	102	152 - 508	9.5	178	0.0009 - 0.035	0008-13-032
0008-12-086	102	152 - 762	9.5	178	0.0009 - 0.12	0008-13-032
0008-12-057	102	152 - 762	9.5	254	0.0009 - 0.12	0008-13-026
0008-12-055	152	254 - 762	4.6	254	0.0043 - 0.12	0008-13-026
0008-12-097	152	254 - 1143	7.6	356	0.0043 - 0.40	0008-13-013
0008-12-070	152	254 - 508	9.5	178	0.0043 - 0.035	0008-13-032
0008-12-058	152	254 - 762	9.5	254	0.0043 - 0.12	0008-13-026
0008-03-041	152	254 - 1143	20	356	0.0043 - 0.40	0008-13-013
0008-03-043	152	305 - 1651	20	635	0.0074 - 1.18	0008-13-015
0008-12-046	152	254 - 762	20	254	0.0043 - 0.12	0008-13-026
0008-08-042	152	254 - 1143	20	356	0.0043 - 0.40	0008-13-013
0008-03-045	203	305 - 1143	29	356	0.0074 - 0.40	0008-13-013
0008-03-046	203	305 - 1143	29	356	0.0074 - 0.40	0008-13-013
0008-03-053	203	305 - 1651	29	635	0.0074 - 1.18	0008-13-015
0008-03-001	254	381 - 1143	20	356	0.0145 - 0.40	0008-13-013
0008-03-002	254	381 - 1651	20	635	0.0145 - 1.18	0008-13-015
0008-03-004	254	43 - 2286	20	1016	0.0145 - 0.40	0008-13-017
0008-03-057	254	381 - 1143	29	356	0.0145 - 0.40	0008-13-013
0008-03-006	305	508 - 1143	20	356	0.35 - 0.40	0008-13-013
0008-03-051	305	508 - 1651	29	635	0.034 - 1.18	0008-13-015
0008-03-040	305	508 - 1651	20	635	0.034 - 1.18	0008-13-015
0008-03-052	305	508 - 2286	20	1016	0.034 - 3.13	0008-13-017
0008-03-010	406	610 - 1651	20	635	0.059 - 1.18	0008-13-015
0008-03-012	406	610 - 2286	20	1016	0.059 - 3.13	0008-13-017
0008-03-016	508	762 - 1651	20	635	0.116 - 1.18	0008-13-015
0008-03-018	508	762 - 2286	20	1016	0.116 - 3.13	0008-13-017
0008-03-017	508	762 - 1651	29	635	0.116 - 1.18	0008-13-015
0008-03-019	508	762 - 2286	29	1016	0.116 - 3.13	0008-13-017
0008-03-022	584	889 - 1651	20	635	0.184 - 1.18	0008-13-015
0008-03-024	584	889 - 2286	20	1016	0.184 - 3.13	0008-13-017
0008-03-023	584	889 - 1651	29	635	0.184 - 1.18	0008-13-015
0008-03-025	584	889 - 2286	29	1016	0.116 - 3.13	0008-13-017
0008-03-028	838	1016 - 2286	20	1016	0.275 - 3.13	0008-13-017
